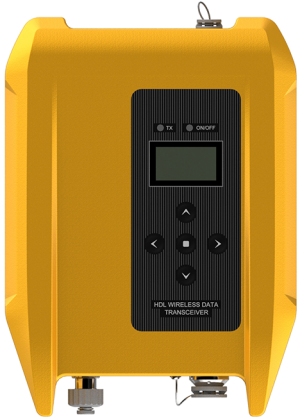

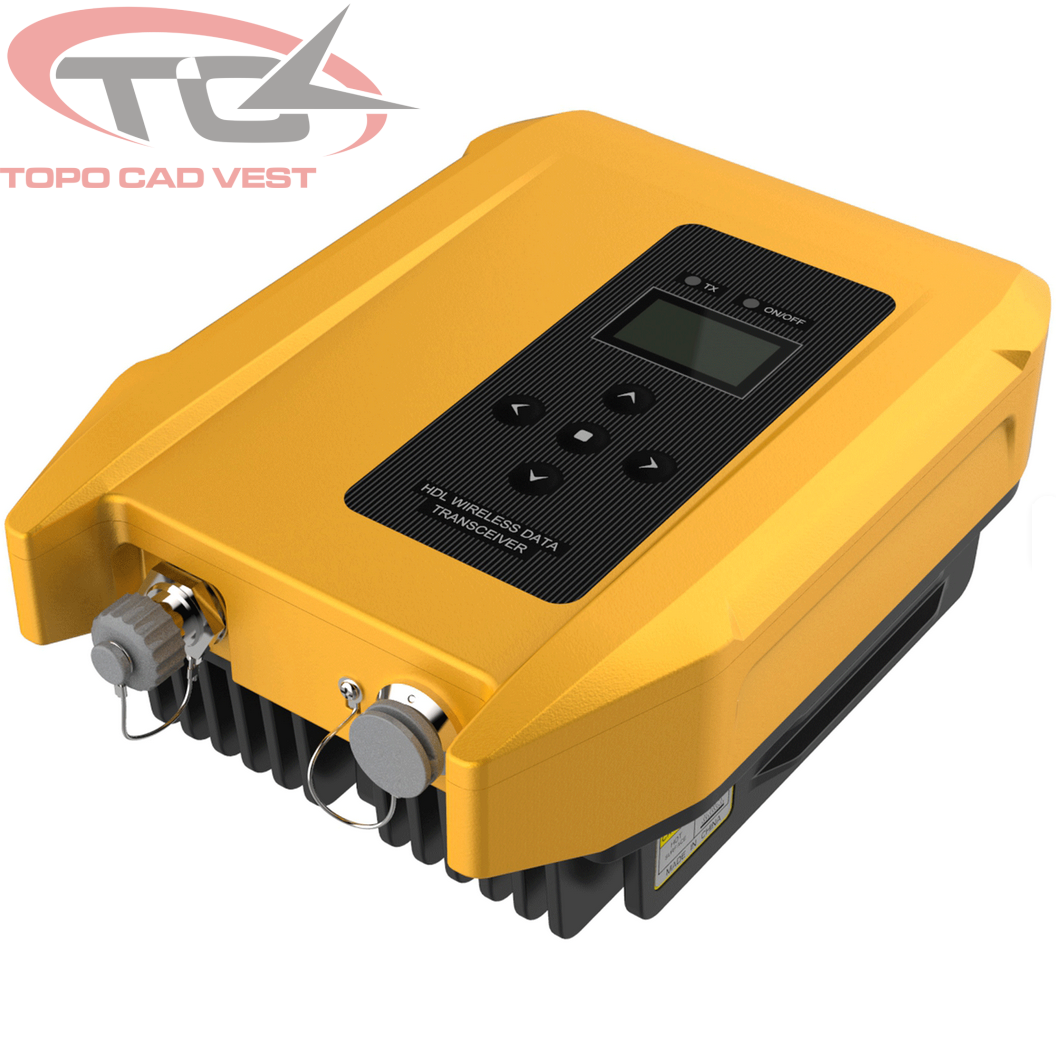

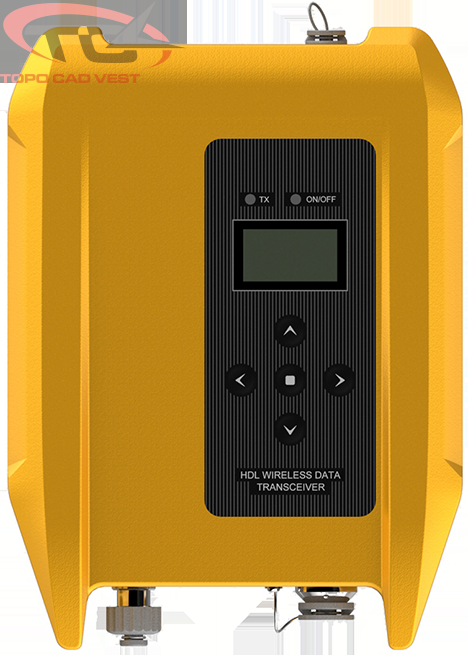

Radio extern Hi-Target HDL460A

Specificatii generale
– camp frecvente: 403-473 MHz
– mod de operare: half-duplex
– Tip modulatie: 4FSK, GSMK
– Tensiune de alimentare: 12 V
– Puterea disipata: sub 87.5W in mod de lucru High Power (35W)/ sub 52 W in mod de lucru Low Power (10W)
– Dimensiuni: 178 mm x 128.5 mm x 76.9 mm
– Greutate: 1.495 Kg
– Temperatura de lucru: -30°C~+65°C
– Temperatura de depozitare: -50°C~+80°C
– Porturi antena: UHF, TNC
– Interfata date: LEMO cu 5 pini
– Puterea de iesire RF: 50 dBc (10W)

Modem
– protocoale: HI-TARGET9600, HI-TARGET19200, TRIMTALK450S, TRIMMARK III, SOUTH9600, SOUTH19200, CHC9600, CHC19200, TRANSEOT, SATEL-3AS25K, SATEL-3AS 12.5K
– numar canale: 116
– viteza de transmisie: 9600 bps, 19200 bps
– tip modulatie: GSMK
– viteza de transmisie prin portul serial: 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps

Interfete
– display de 1.3 inch, rezolutie 128 x 64
– 5 butoane
– 1 x indicator luminos de alimentare
– 1 x indicator de emisie

Conditii de mediu
– factor de protectie la apa si praf: IP 67
– vibratii: 5-2000 Hz
– cadere libera de la 1.2m
